Bite Modules
Applications for these modules include built in test equipment, dithering for increased dynamic range of A/D converters, and as an economical source for bit error rate testing.

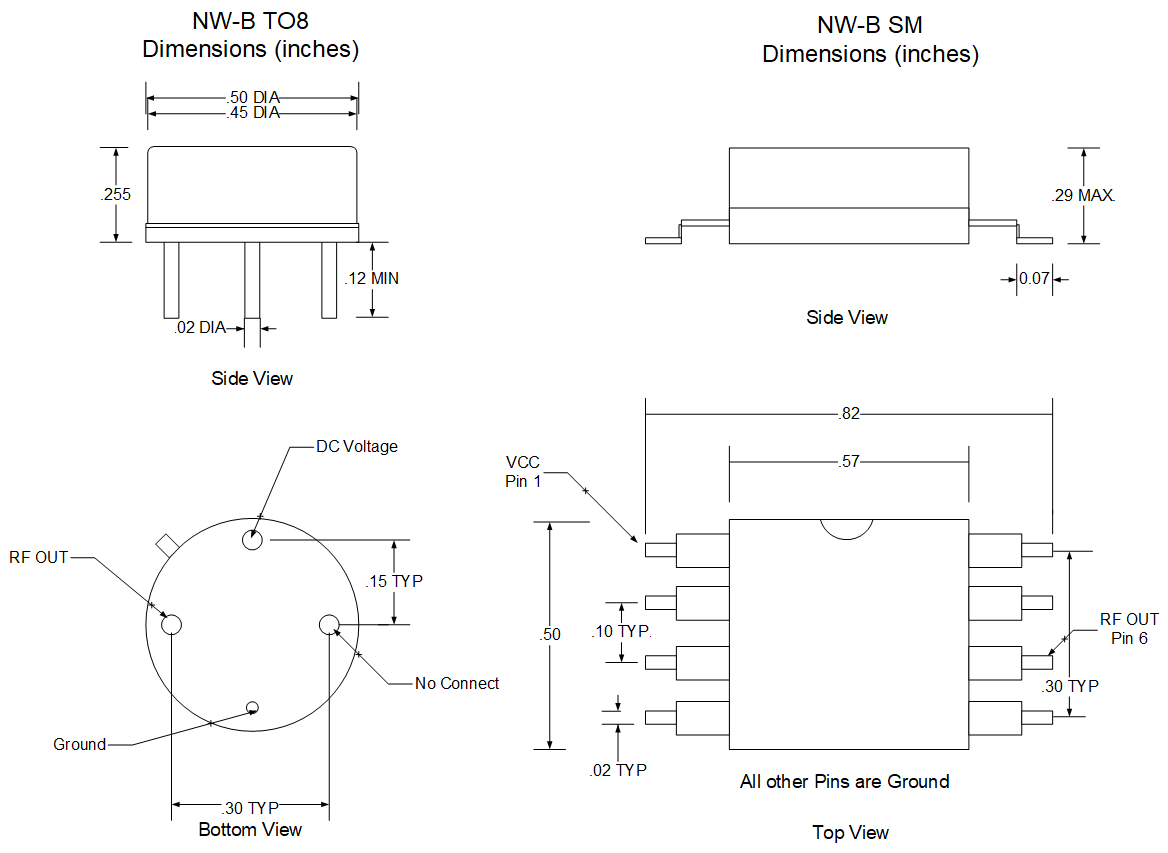

The unit comes in an industry standard package and is available in either TO-8 or SM pin packages. Utilizing small internal parts count the unit is economically priced and delivery is typically from stock.
Specifications:
Operating temperature:
-40°C to +85°C (surface mount)
-55°C to +125°C (drop-in)
Temperature coefficient:
0.01 dB/°C
Storage Temperature:
-65 to +150 °C
Output:
White Gaussian noise
Minimum power:
(-143 dBm/Hz) 31 dB ENR
(-123 dBm/Hz) 51 dB ENR
(-109 dBm/Hz) 65 dB ENR
Crest factor:
5:1
Packaging:
Drop-in
surface mount
Input Voltage:
+12V, +15V or +28V
Supply sensitivity:
0.1 dB/%rV
Model Number
Frequency
Flatenss
ENR
RL
Current mA
For 12VDC add /12 For 15VDC add /15 * +/- 4dB SM units
NW5M-B
200KHz - 500MHz
+/- 0.5
31
50
10
NW1G-B
200KHz - 1GHz
+/- 1.0
31
50
10
NW2G-B
200KHz - 2GHz
+/- 1.5
31
50
10
NW3G-B
200KHz - 3GHz
+/- 1.5
31
50
10
NW4G-B
200KHz - 4GHz
+/- 2.0*
31
50
10
NW5G-B
200KHz - 5Ghz
+/- 2.5*
31
50
10
NW6G-B
200KHz - 6GHz
+/- 3.0*
31
50
10
NW5M-AB
200KHz - 500MHz
+/- 2.0
51
50
25
NW1G-AB
200KHz - 1GHz
+/- 2.0
51
50
25
NW2G-AB
200KHz - 2GHz
+/- 2.0
51
50
25
NW3G-AB
200KHz - 3GHz
+/- 2.0
51
50
25
NW5M-HAB
5MHz - 500MHz
+/- 2.0
65
50
30
NW1G-HAB
5MHz - 1GHz
+/- 2.0
65
50
30
Download Spec Sheet
Applications for these modules include built in test equipment, dithering for increased dynamic range of A/D converters, and as an economical source for bit error rate testing. The unit comes in an industry standard package and is available in either TO-8 or SM pin packages. Utilizing small internal parts count the unit is economically priced and delivery is typically from stock. |
|---|
| Specifications: | |
|---|---|
Operating temperature: |
-40°C to +85°C (surface mount) -55°C to +125°C (drop-in) |
Temperature coefficient: |
0.01 dB/°C |
Storage Temperature: |
-65 to +150 °C |
Output: |
White Gaussian noise |
Minimum power: |
(-143 dBm/Hz) 31 dB ENR (-123 dBm/Hz) 51 dB ENR (-109 dBm/Hz) 65 dB ENR |
Crest factor: |
5:1 |
Packaging: |
Drop-in surface mount |
Input Voltage: |
+12V, +15V or +28V |
Supply sensitivity: |
0.1 dB/%rV |
| Model Number | Frequency | Flatenss | ENR | RL | Current mA |
|---|---|---|---|---|---|
| For 12VDC add /12 For 15VDC add /15 * +/- 4dB SM units | |||||
| NW5M-B | 200KHz - 500MHz | +/- 0.5 | 31 | 50 | 10 |
| NW1G-B | 200KHz - 1GHz | +/- 1.0 | 31 | 50 | 10 |
| NW2G-B | 200KHz - 2GHz | +/- 1.5 | 31 | 50 | 10 |
| NW3G-B | 200KHz - 3GHz | +/- 1.5 | 31 | 50 | 10 |
| NW4G-B | 200KHz - 4GHz | +/- 2.0* | 31 | 50 | 10 |
| NW5G-B | 200KHz - 5Ghz | +/- 2.5* | 31 | 50 | 10 |
| NW6G-B | 200KHz - 6GHz | +/- 3.0* | 31 | 50 | 10 |
| NW5M-AB | 200KHz - 500MHz | +/- 2.0 | 51 | 50 | 25 |
| NW1G-AB | 200KHz - 1GHz | +/- 2.0 | 51 | 50 | 25 |
| NW2G-AB | 200KHz - 2GHz | +/- 2.0 | 51 | 50 | 25 |
| NW3G-AB | 200KHz - 3GHz | +/- 2.0 | 51 | 50 | 25 |
| NW5M-HAB | 5MHz - 500MHz | +/- 2.0 | 65 | 50 | 30 |
| NW1G-HAB | 5MHz - 1GHz | +/- 2.0 | 65 | 50 | 30 |
